    Longlife Eltek Flatpack2 Rectifier Module 110V 2000W HE WOR 241119.805

    Ask Lasest Price
    Brand Name : Eltek
    Model Number : 241119.805
    Certification : CE, RoHS
    Price : negotiable
    Delivery Time : within 10 days of payment
    Payment Terms : L/C, T/T
    Supply Ability : 1000 sets/month
    • Product Details
    • Company Profile

    Longlife Eltek Flatpack2 Rectifier Module 110V 2000W HE WOR 241119.805

    Eltek Flatpack2 Rectifier Module 110V 2000W HE WOR 241119.805


    Overview


    High efficiency and reliable rectifiers

    The most efficient power conversion module in the industry! Since the launch the Flatpack 2 family has expanded into a wide selection of power ratings and voltages


    Key Feature


    Proven Reliability

    High Power Density

    Application Flexibility, 2kw - 2m

    Accepts Dc Input (Dc/ Dc Converter)

    Global Compliance (Ce, Ul, Nebs)

    Marine & Offshore Certification

    Patented Technology

    Digital Controllers


    Applications


    Power Utilities

    Switch Tripping

    Control & Protection Systems

    Emergency Lighting

    Railway Infrastructure

    Converter Stations

    Power Stations

    Various other applications in demanding industries like marine, oil & gas, process etc.


    Specifications


    Part number241119.805
    Model110-120 / 20A HE
    INPUT DATA
    Voltage range (nominal)176 - 277 V AC 1)
    Voltage range

    85 - 305 V A 1)

    C

    Frequency45 - 66 Hz
    Maximum current18.64 ARMS
    Power Factor0.99 (@ 50-100 % load)
    THD (@ 230 VAC)< 4 % (@ full load)
    ProtectionVaristor for transient protection, fuse in both lines, shutdown above 300/ 305 V
    OUTPUT DATA
    Default voltage122.5 V DC
    Voltage range

    90.02) - 151.25 V DC 1)

    # Pb cell supported (1.8 - 2.4 V DC/ cell)54 -60
    # NiCad cell supported (1.05 - 1.65 V DC/ cell)86 - 91
    Max power, nominal input3025 W1)
    Max power, 85V input1280 W
    Max current20 A
    Hold-up time, default voltage and 1500 W load10 ms, VOUT > 99.7 VDC
    Current sharing±5% of maximum current from 10 to 100% load
    Static voltage regulation±0.5% from 10% to 100% load and nominal input
    Dynamic voltage regulation±5.0% for 10-80% or 80-10% load variation, regulation time < 50ms
    Rippel and noise, 30 MHz bandwidth< 500 mV PP
    ProtectionOvervoltage shutdown, short circuit proof, high temperature, hot plug -in inrush current limiting, ORing diode
    OTHER SPECIFICATIONS
    Efficiency> 94%
    Isolation3.0 kVAC – input and output, 1.5 kV AC – input earth, 1.5 kV DC – output earth 3 kVAC CAN – input, 3kVAC CAN – output
    Alarms (Red LED)Low mains shutdown, High and low temperature shutdown, Rectifier Failure, Overvoltage shutdown on output, Fan failure, Low voltage alarm, CAN bus failure
    Warnings (Yellow LED)Rectifier in power derate mode, Remote battery current limit activated, Input voltage out of range, flashing at overvoltage
    Normal (Green LED)Input and output ok
    MTBF (Telcordia SR-332 Issue I method III (a))>400 000h (@T AMBIENT= 25°C)
    Operating temperature (5 - 95% RH non-cond.) Output power de-rates above temp / to

    -40 to +75°C [ -40 to +167°F]

    +50°C / 1150 W @ +75°C

    Storage temperature-40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing
    Dimensions[WxHxD] / Weight109 x 41.5 x 327mm (WxHxD) [4.25 x 1.69 x 13”] / 1.950 kg [4.3lbs]
    DESIGN STANDARDS
    Electrical safetyUL 60950 -1, EN 60950 -1, CSA 22.2
    EMC

    ETSI EN 300 386 V.1.3.2

    EN 61000-6-1 / -2 / -3 / -4 / -5

    Mains HarmonicsEN 61000 -3-2
    Environment

    ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2)

    ETSI EN 300 132-2

    2011/ 65/ EU (RoHS) & 2008/ 98/EC (WEEE)

    Marine compliance

    (EMC class B with AC filter)


    -


    Specification valid for HW version 2 and newer. For older revision see DS:24111x.805.DS3 ver1.

    Output voltage will increase at light loads (< 1.6A)


    2U FLATPACK2 BULK OUTPUT RACK WITH EARTH FAULT DETECTION

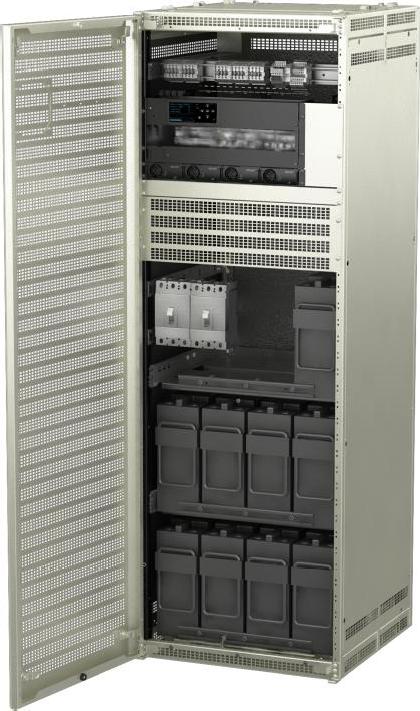

    IBB SYSTEM IN FPC CABINET

    AVAILABLE CURRENT AT NOMINAL INPUT 24111x.805
