    Flatpack2 220V 2000W 5G Network Equipment HE Rectifiers Eltek Rectifier Module 241115.815

    Flatpack2 220v 2000W HE Rectifiers Eltek Rectifier Module 241115.815


    High efficiency and reliable rectifiers

    The most efficient power conversion module in the industry! Since the launch the Flatpack2 family has expanded into a wide selection of power ratings and voltages.

    Power systems up to the MW-range can be realized using the 10A model addressing small and larger modular data centers’ power needs. 220VDC power systems provide an excellent alternative to traditional AC UPS providing significant efficiency and reliability improvements.

    With 220V DC, standard components, cables and distribution can be used and most IT equipment designed for 208/ 230V AC can be connected directly to the 220V DC bus.


    Applications


    Power Utilities

    Switch Tripping

    Control & Protection Systems

    Emergency Lighting

    Railway Infrastructure

    Converter Stations

    Power Stations

    Marine And Off-Shore

    Central Power System

    Data Center

    Central Power System

    Dc/ Dc - Isolate Branches


    Specifications


    Part number241115.815
    Model220 / 2000 HE WOR
    INPUT DATA
    Voltage range85 - 300 V AC/ DC
    Voltage range (nominal)185 - 275 V AC/ DC
    Frequency0 - 66 Hz
    Maximum current11.9 A RMS
    Power Factor0.99 (@ 50-100% load)
    THD (@ 230 VAC)< 5 % (@ full load)
    ProtectionVaristor for transient protection, fuse in both lines, shutdown above 300/ 305 V
    OUTPUT DATA
    Default voltage245.3 V DC
    Voltage range178.5 1) - 297 VDC
    # Pb cell supported (1.8 - 2.4 V DC/ cell)108 - 122
    # NiCad cell supported (1.05 - 1.65 V DC/ cell)170 - 180
    Max power, nominal input2000 W
    Max power, 85V input850 W
    Max current, @220V DC9.16 A
    Hold-up time, default voltage and 1500 W load20 ms, VOUT > 178 V DC
    Ripple and noise, 30 MHz bandwidth< 1000 mV PP
    Current sharing±5% of maximum current from 10 to 100% load
    Static voltage regulation±0.5% from 10% to 100% load and nominal input
    Dynamic voltage regulation±5.0% for 10-90% or 90-10% load variation, regulation time < 50ms
    ProtectionOvervoltage shutdown, short circuit proof, high temperature, hot plug -in inrush current limiting, ORing diode
    OTHER SPECIFICATIONS
    Efficiency> 95%
    Isolation3.0 kVAC – input to output, 1.5 kV AC – input to earth, 1.5 kV DC – output to earth 3 kVAC – CAN to input, 3 kV AC – CAN to output, 500 V AC – CAN to earth
    Alarms (Red LED)Low mains shutdown, High and low temperature shutdown, Rectifier Failure, Overvoltage shutdown on output, Fan failure, Low voltage alarm, CAN bus failure
    Warnings (Yellow LED)Rectifier in power derate mode, Remote battery current limit activated, Input voltage out of range, flashing at overvoltage
    Normal (Green LED)Input and output ok
    MTBF (Telcordia SR-332 Issue I method III (a))>391 000h (@T AMBIENT= 25°C)
    Operating temperature (5 - 95% RH non-cond.) Output power de-rates above temp / to

    -40 to +75°C [ -40 to +167°F]

    +55°C / 1350W @ +75°C

    Storage temperature-40 to +85°C (-40 to +185°F), humidity 0 - 99% RH non-condensing
    Dimensions[WxHxD] / Weight109 x 41.5 x 327mm (WxHxD) [4.25 x 1.69 x 13”] / 1.950 kg [4.3lbs]
    DESIGN STANDARDS
    Electrical safetyUL 60950 -1, EN 60950 -1, CSA 22.2
    EMC

    ETSI EN 300 386 V.1.3.2

    EN 61000-6-1 / -2 / -3 / -4 / -5

    Mains HarmonicsEN 61000 -3-2
    Environment

    ETSI EN 300 019: 2-1 (Class 1.2), 2-2 (Class 2.3) & 2-3 (Class 3.2)

    ETSI EN 300 132-2

    2011/ 65/ EU (RoHS) & 2008/ 98/EC (WEEE)

    Marine compliance

    (EMC class B with AC filter)

    DnV Rules for Classification of Ships, High Speed & Light Craft and DnV Offshore

    Standards


    • VOUT may increase at no and very light load (< 1 A) for V OUT_SET < 245 V DC set and V IN > 250 V AC/ DC
    • Specification valid for HW version 2 and newer. For older revision see DS:24111x.815.DS3 ver1.
    • VRLA batteries boost 2.33V/ cell
    • 8A when V IN > 290V AC and Tambient > 45°C and VOUT < 220V DC

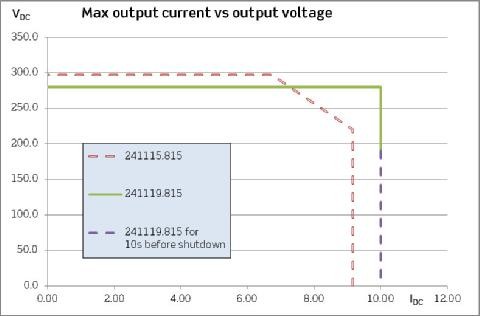

    AVAILABLE CURRENT AT NOMINAL INPUT 24111x.815
