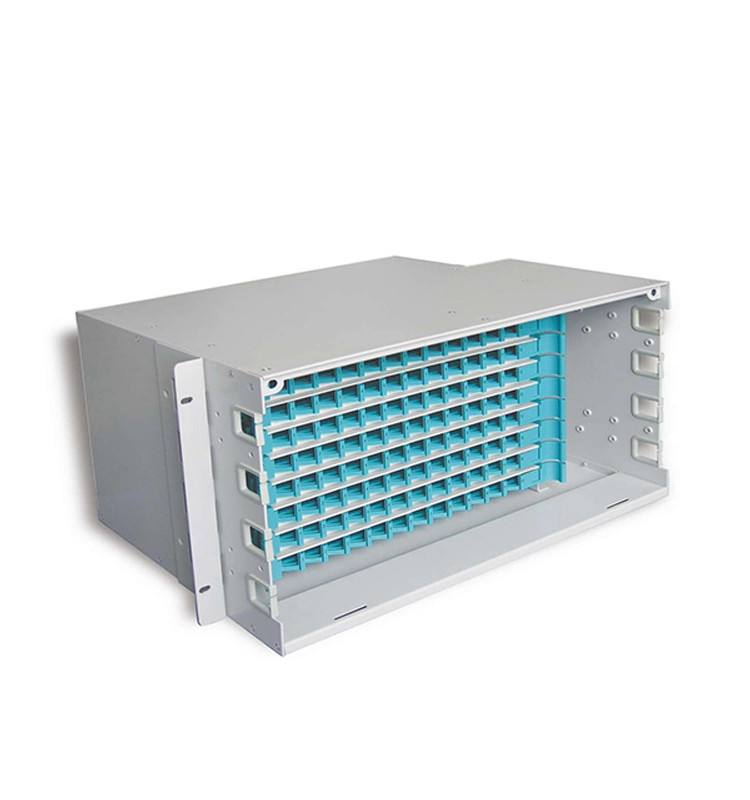

Cold-Rolling Steel 24 48 96 Core Fiber Optic Patch Panel ODF With Splice Tray

Description

An optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fibre splicing, fibre termination, fibre optic adapters & connectors and cable connections together in a single unit. It can also work as a protective device to protect fibre optic connections from damage.

Features

1) Standard size, light weight and reasonable structure

2) Splice tray inside changeable

3) Can be used in 19'', 23'' standard distribution frame

4) Suitable for ribbon and single fiber

5) Various panel plate to fit different adapter interface

6) Front mark on the plate is easy for identification and operation

7) 24C, 36C, 48C, 72C 96C optional, with or without fiber optic pigtails and adapters

8) Easy for management and operation

Specifications

Fiber capacity: 12/24/48/72/96/144 cores

Fiber Port: FC, SC, ST and LC

Number of ODF disks: 12 for 1, 24 for 2, 48 for 4, 72 for 6, 96 for 8, and 144 for 12

Working temperature: -10 °C ~ +40 °C

Storage temperature: -25 ° C ~ +55 ° C

Relative humidity: ≤ 85% (+30 ° C)

Atmospheric pressure: 70Kpa~106Kpa

Nominal operating wavelength: 850nm, 1310nm, 1550nm

Insertion loss: ≤ 0.5dB

Return loss: PC ≥ 40dB, UPC ≥ 50dB, APC ≥ 60dB

Electrical strength: ≥3KV(DC)/1min without breakdown

Insulation resistance: ≥1000MΩ/500V (DC)

Life: ≥1000 times

Application range: Small and medium-sized wiring system for fiber to the cell, fiber to the building, remote module office and wireless base station
