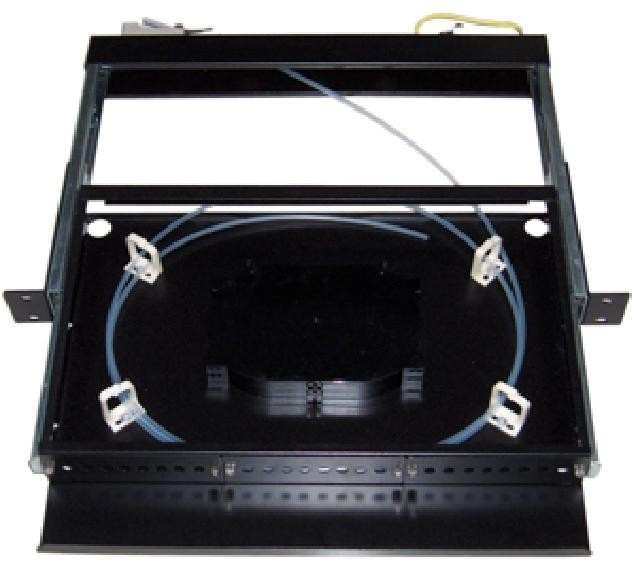

Standard Optical Distribution Cable Fixer Distributor Splicing Frame for Cabinet

Diversity

Fast and simple installation in environments with little space as well as sites with high fiber density.

Migration both to existing and new network infrastructures

Front or rear mounting in 19’’ and ETSI racks

Modular application (pure splice, splice patch, breakout applications, fiber storage)

Description

Optical distribution frame (ODF) is used for connecting optical fiber and equipment of central office. 19” 1U~4U standard optical distribution frame can be installed on the desk or in the cabinet. It is mainly used in the telecommunication equipment room and network equipment room.

Features

With function of distribution and splicing

19 inch, 1U~5U standard installation, 1~8 trays, 12 ports per tray

2 cable fixer

Adaptor FC,SC can be installed

Suitable for ribbon and bunchy fiber cable

Rack mount, wall mount. Suitable for simplex and duplex different adapter

Easy to operate and convenient maintenance

Metal material box

Models

General

Operation temperature: -40~+60°C

Relative humidity: ≤85% (when the temperature is below 30°C)

Atmosphere pressure: 70~106Kpa

Insulating resistance: ≥2×104 MΩ / 500VDC

Voltage-resistance strength: Under the effect of 15kv / DC / 1min, non-puncture, and no arc-over

Tray: 1~8pcs (tray with 12 cores).

Accessories: insulation tape, nylon tie, labeling paper, fixer.

Application

FTTx (ODF rack)

Optical fiber cabinet

Optical fiber network

Installation: desktop, wall mounting.
