IEC Standard C19 Sockets PDU Data Cabinet Power Distribution Unit

Introduction

IEC C19 PDUs are commonly found in networking cabinets connecting directly to the targeted equipment. Many products use the C19 as it is an international standard and can deliver a higher output than the IEC C13. Many UPS's also use the C19 output.

Combining a fully certified plug input with a compatible heavy load power flex means you can be assured this PDU can work without problems .

Furthermore incorporated onto the horizontal form-factor are industry standard sockets ideal for data telcom and broadcast equipment with the added benefit of integral electrical surge protection.

Our 19 inch rack mountable PDU has a 1U and 1.5U profile and is made from aluminum or steel. With 8 sockets. Different sockets number,such as 4way,6way ,10way ,12 way ,16way,20way ect ,is available.The 19 rack mount switched PDU has a 3 meter H05VV-F-3G1.5(H05VV-F-3G2.5 optional) coppe cable and also comes with on and off switch along with a switch cover for extra safety.

Specially designed for 482.6mm (19 inch) Network cabinets. Horizontally mounted with switch cover. Please be aware that some flight cases are low profile and not a standard profile. Please check your cabinet profile is suitable before purchasing. total length including ears is 49cm

Main Feature

• Strong steel cased finished in black
• 16A IEC 60320 C20 Plug
• 16A Red illuminated double pole circuit breaker (DP MCB)
• Current rating 16A max
• High-Integrity dual earth bonding for maximum safety
• External M5 earth stud, complete with earth wire 250mm long
• 6 Way unit with C20 inlet is suitable for standard horizontal 19" mounting
• Circuit Breaker - Double Pole, 2 pole sensing. 250V 16A UL, VDE, CSA, CE

Specifications

Input Options

• 13A UK plug

• IEC14 plug

• 16A Commando plug (max.32A)

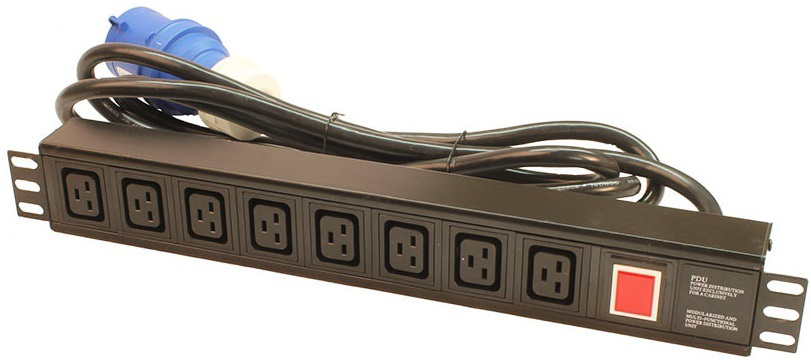

Product Picture

Wuhan Unique Mechanical And Electrical Equipment Co., LTD. is a high-tech enterprises with a combination of of science, industry and trade. We mainly engaged in R&D and manufacturing of network center room equipment, such as PDU, ODF, CMA, Fiber Spool Frame, Network Panel, Network Cabinet, OF Jointing Box, Fiber Optic Connector, ADSS Cable, Micro Fiber, Pigtail, Patch Cord, UTP Cable, etc. Provide high level of technical consultation and technical services.

Our company has established research and development, production and sales centers in many regions, with professional design ability and production capacity.We can design and produce special power supply for cabinet or other customized services according to your requirement.

Our products include: cabinet power splitter, PDU, machine cabinet switchboard, network cabinets, PDU remote intelligent monitoring, and other products, our products are widely used in financial, securities, military, petrochemical, telecommunications, transportation, medical, commercial chain organizations, education, industry, government agencies, research institutes, high-tech application fields such as industrial enterprises, the industry recognition and praise.We also provide customized products to meet the special requirements of customers.

All of our products have passed ISO 9001:2005 international quality management system certification. All our products are in line with international and domestic technical standards, with international safety certification, and has been a number of patents.

Wuhan Unique Mechanical And Electrical Equipment Co., LTD., always adhere the below business purpose: customer oriented, quality first, honesty development and win-win cooperation. Relying on science and technology for development, continue to provide users with satisfactory high-tech products, is the goal we always pursue.

We give a warm welcome to all clients and hope the long-term reciprocal cooperation with each other for the splendid tomorrow.
