    Universal Sockets Basic PDU Power Distribution Unit Rack Mount Power Strip

    Ask Lasest Price
    Brand Name : Unique-Tel
    Model Number : BASIC-PDU
    Certification : CE RoHs
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 1000 Pcs/Day
    Delivery Time : 1 week
    • Product Details
    • Company Profile

    Universal Sockets Basic PDU Power Distribution Unit Rack Mount Power Strip

    Universal Basic PDU Power Distribution Unit Data Cabinet Power Supply Strip


    Introduction


    BASIC PDU has simply come to mean a PDU which is not networked.


    A rack PDU is a power distribution unit designed to fit into a server rack in either a vertical (0U) or horizontal (1U or more) position. You can basically think of them as industrial-grade power strips that have the potential to power multiple servers. Basic rack PDUs provide power to the IT equipment without any advanced features such as metering, monitoring, or remote access functionality.


    Main Features

    • Low cost power distribution
    • Horizontal or vertical mounting
    • A variety of inputs and outputs: 120V, 208V Single Phase, 208V 3-Phase
    • Varying power capacities from 15 amps to 50 amps


    Basic PDU Electrical properties

    • Voltage:100-120VAC, 100-240VAC, 200-240VAC,200-250VAC
    • Current:10A-50A Max.
    • Power:2KW-10KW
    • Frenqucy:50-60Hz

    Basic PDU Available Standard

    • United States Standard
    • German Standard
    • Italian Standard
    • Italian Universal Standard
    • UK Standard
    • French Standard
    • Austrilian Standard
    • China Standard
    • IEC Standard (IEC320C19)
    • Universal Standard

    Basic PDU Available Plug and Socket

    • UK
    • IEC C19/C20
    • IEC C13/C14
    • US
    • AUS
    • CN
    • SCHUKO
    • UNIVERSAL

    Basic PDU Available Lead Cable Length

    • 2-3.5m
    • Customized

    Specifications


    Nominal Input Voltage100-120 VAC100-240 VAC100-240 VAC
    Maximum Input Current20A Max20A Max16A Max
    Input Frequency50-60 Hz50-60 Hz50-60 Hz
    Input ConnectionIEC-320 C20IEC-320 C20IEC-320 C20
    Input PowerIEC-320 C19 / NEMA L5-20P or NEMA 5-20PIEC-320 C19 / NEMA L6-20PIEC-320 C19 / IEC-320 C20
    Outlet Type(12) NEMA 5-20R(12) IEC 320 C13(12) IEC 320 C13
    Maximum Output Current (Outlet)20A Max15A Max10A max
    Maximum Output Current (Bank)20A Max20A Max16A max
    Maximum Output Current (Total)20A Max20A Max16A max
    OPD (Overcurrent Protection Device)YesYesYes
    Physical Properties
    Dimensions (L x W x H)48.80 x 4.40 x 4.50 cm48.80 x 4.40 x 4.50 cm48.80 x 4.40 x 4.50 cm
    Weight0.88 kg0.88 kg0.88 kg
    Power Cord Length3m3m3m
    Environmental
    Temperature (Operating / Storage)0 – 40°C / -20 – 60°C*0 – 40°C / -20 – 60°C*0 – 40°C / -20 – 60 °C*

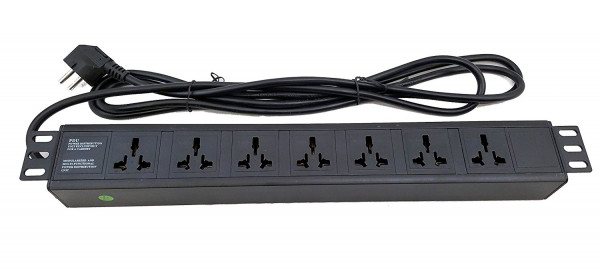

    Product Picture
