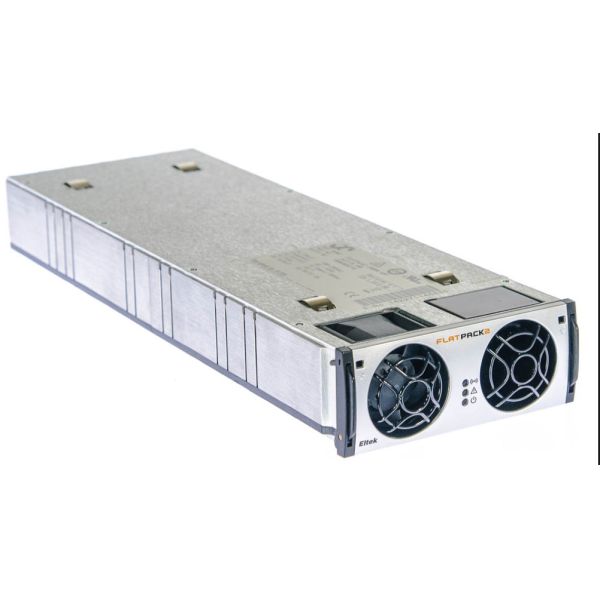

Flatpack2 Eltek Valere 48V 3000W Rectifier Module 48/3000 241119.100

Technical Specification:

AC Input:
Voltage :85-300V AC (Nominal 185 – 275V AC)
Frequency :45 to 66Hz
DC Output:
Voltage: 53.5V DC (adj. range: 43.5-58.0V DC)
Output Power : 3000 W at nominal input
Maximum Current: 62.5Amps at 48 VDC and nominal
Output Protection: Overvoltage shutdown, Short circuit proof, High temperature protection
Efficiency:> Typical 93%
Operating Temp.:-40 to +75°C (-40 to +158°F)
MTBF :> 350, 000 hours

Mechnical Specification:

Dimensions- 109 x 41.5 x 327mm (wxhxd)
Weight- 1.95 kg (4.31lbs)

Ordering Information:

Part No.: 241115.105 Flatpack2 Rectifier Module 48/3000
